Zařízení pro výškové práce ve skladech a dílnách -
Zařízení pro výškové práce ve skladech a dílnách

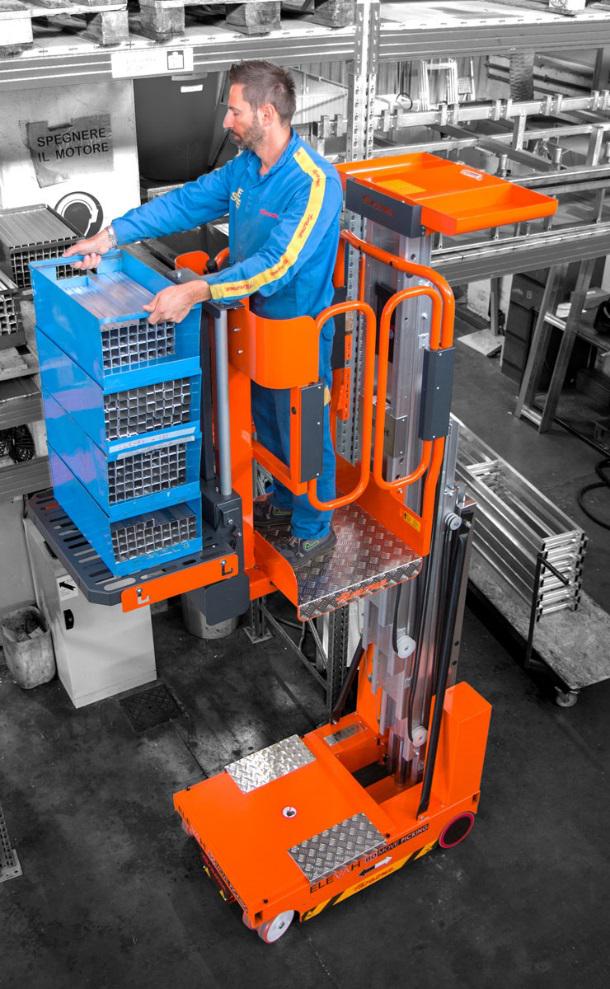

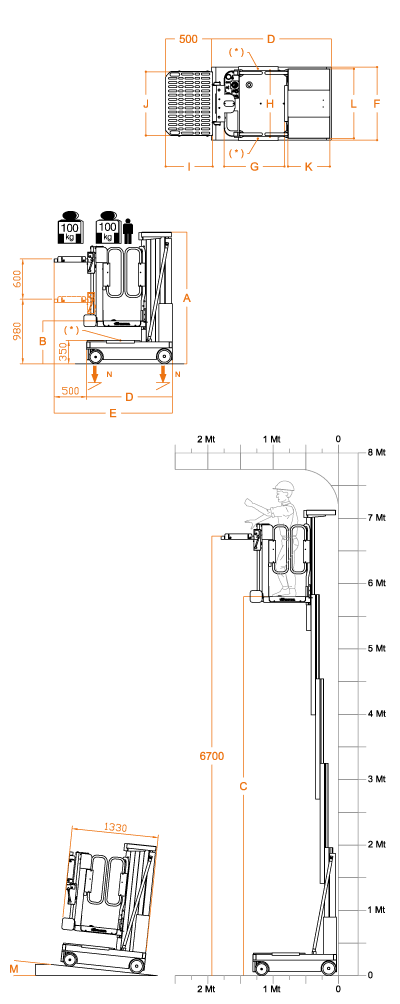

Elevah 80 PICKING
| Max. working height | 7,75 m | |
|---|---|---|
| Max capacity | 200 kg | |
| Number of people | 1 | |
| Use | Internal - External | |
| A | Closed machine height | 1980 mm |
| B | Minimum platform height | 650 mm |
| C | Maximum platform height | 5780 mm |
| D | Base overall dimensions | 1280 mm |
| E | 1720 mm | |
| F | 780 mm | |
| G | Cage dimensions | 640 mm |
| H | 710 mm | |
| Machine weight | 860 kg | |
| K | Fixed picking tray dimensions | 440 mm |
| L | 740 mm | |
| Fixed picking tray capacity | 20 kg | |
| Drive wheels dimension | Ø 220 x 65 mm | |
| Swivel wheels dimensions | Ø 200 x 50 mm | |

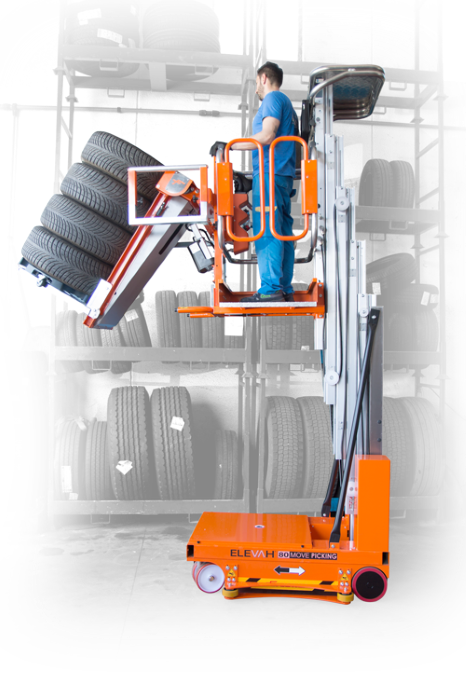

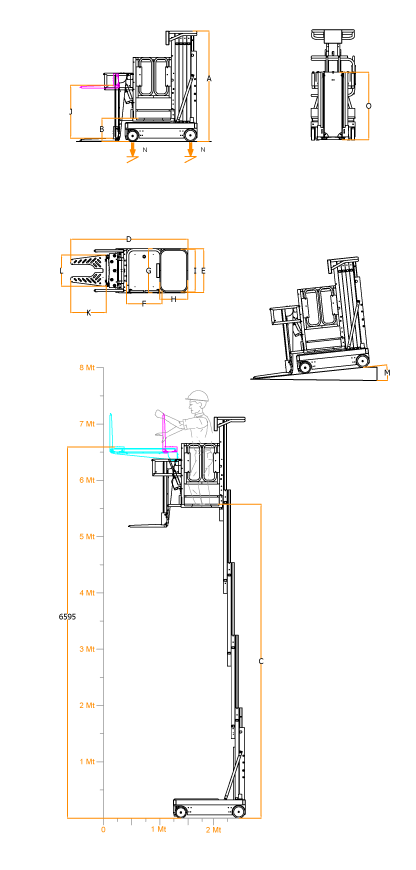

75 TIRES
| Max. working height | 7,57 m | |
|---|---|---|
| Max capacity | 250 kg | |
| Number of people | 1 | |
| Use | Internal - External | |
| A | Closed machine height | 1960 mm |
| A1 | Altezza macchina con accessorio | 2755 mm |
| B | Minimum platform height | 415 mm |
| C | Maximum platform height | 5575 mm |
| D | Base overall dimensions | 2080 mm |
| E | 780 mm | |
| F | Cage dimensions | 630 mm |
| G | 780 mm | |
| Machine weight | 1015 kg | |
| H | Fixed picking tray dimensions | 460 mm |
| I | 760 mm | |
| Fixed picking tray capacity | 20 kg | |
| Drive wheels dimension | Ø 220 x 48 mm | |
| Swivel wheels dimensions | Ø 200 x 40 mm | |

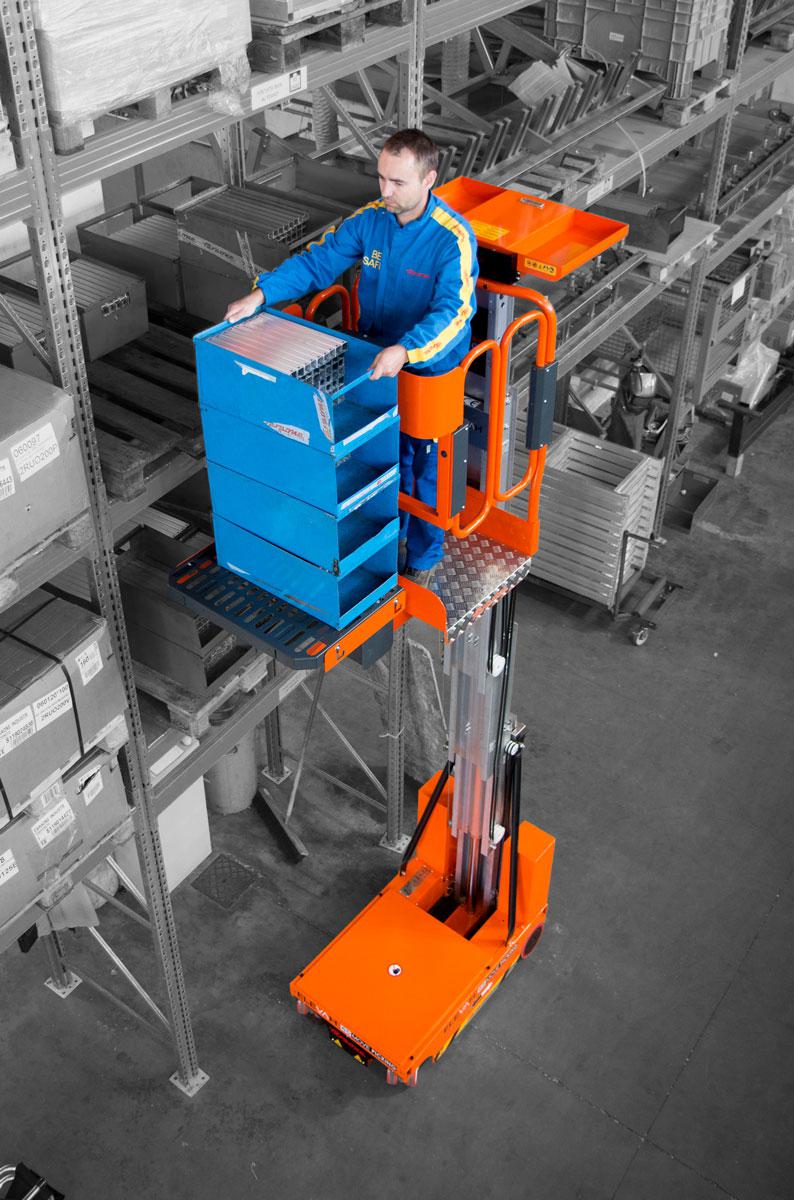

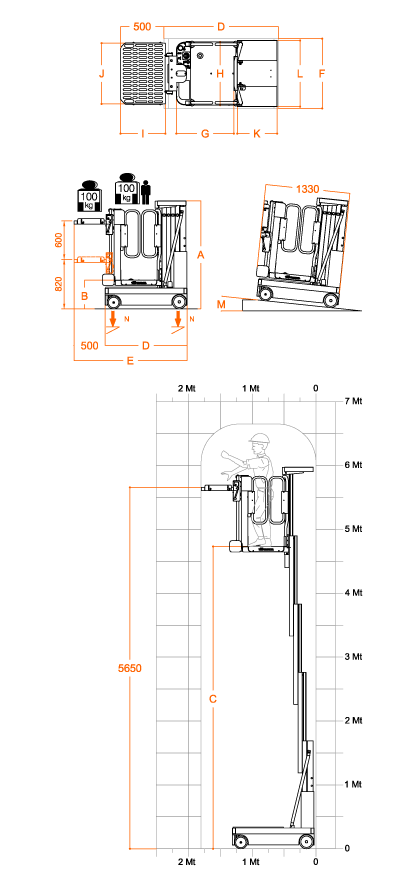

65 MOVE PICKING
| Max. working height | 6,50 m | |
|---|---|---|
| Max capacity | 200 kg | |
| Number of people | 1 | |
| Use | Internal - External | |
| A | Closed machine height | 1720 mm |
| B | Minimum platform height | 460 mm |
| C | Maximum platform height | 4700 mm |
| D | Base overall dimensions | 1280 mm |
| E | 1780 mm | |
| F | 780 mm | |
| G | Cage dimensions | 640 mm |
| H | 710 mm | |
| Machine weight | 830 kg | |
| K | Fixed picking tray dimensions | 440 mm |
| L | 740 mm | |
| Fixed picking tray capacity | 20 kg | |
| Drive wheels dimension | Ø 220 x 65 mm | |
| Swivel wheels dimensions | Ø 200 x 50 mm | |

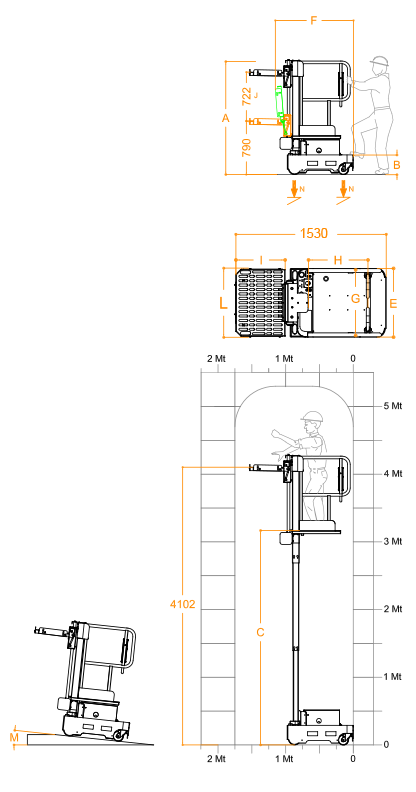

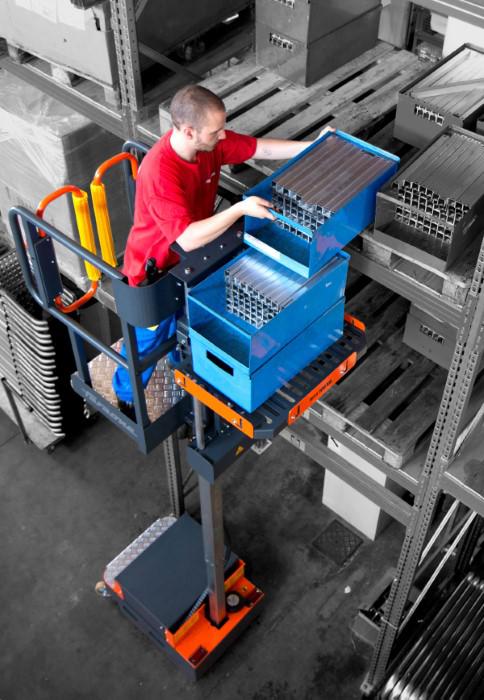

E5 MOVE PICKING
| Max. working height | 5,15 m | |
|---|---|---|
| Max capacity | 200 kg | |
| Number of people | 1 | |
| Use | Internal - External | |
| A | Closed machine height | 1690 mm |
| B | Min. height from the ground* | 289 mm |
| C | Maximum platform height | 3150 mm |
| E | Base overall dimensions | 700 mm |
| F | 1152 mm | |
| G | Cage dimensions | 630 mm |
| H | 780 mm | |
| Machine weight | 640 kg (With electrical picking platform) 590 kg (With removable picking platform) | |
| Drive wheels dimension | Ø 186 x 60 mm | |
| Swivel wheels dimensions | Ø 150 x 40 mm | |

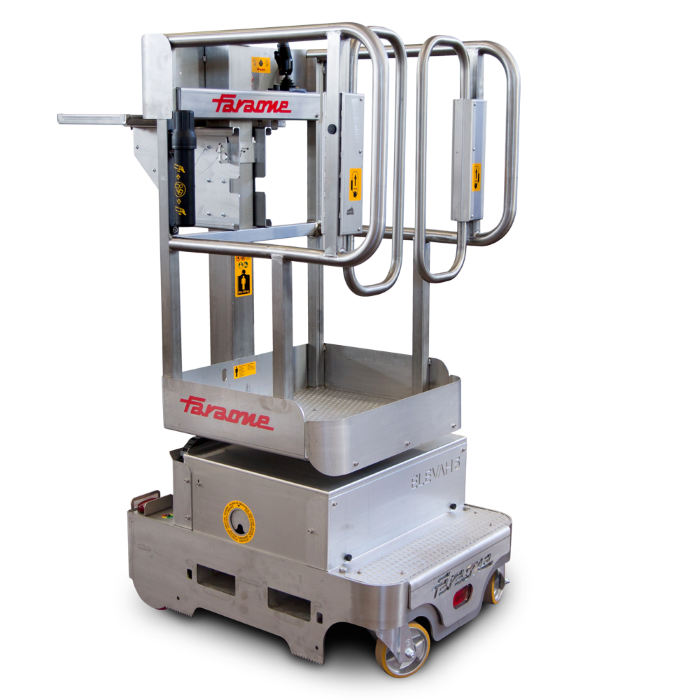

E5 Inox Picking
| Max. working height | 5,15 m | |
|---|---|---|
| Max capacity | 200 kg | |
| Number of people | 1 | |
| Use | Internal - External | |
| A | Closed machine height | 1690 mm |
| B | Min. height from the ground* | 289 mm |
| C | Maximum platform height | 3150 mm |
| E | Base overall dimensions | 700 mm |
| F | 1152 mm | |
| G | Cage dimensions | 630 mm |
| H | 780 mm | |
| Machine weight | 640 kg (With electrical picking platform) 590 kg (With removable picking platform) | |
| Drive wheels dimension | Ø 186 x 60 mm | |
| Swivel wheels dimensions | Ø 150 x 40 mm | |

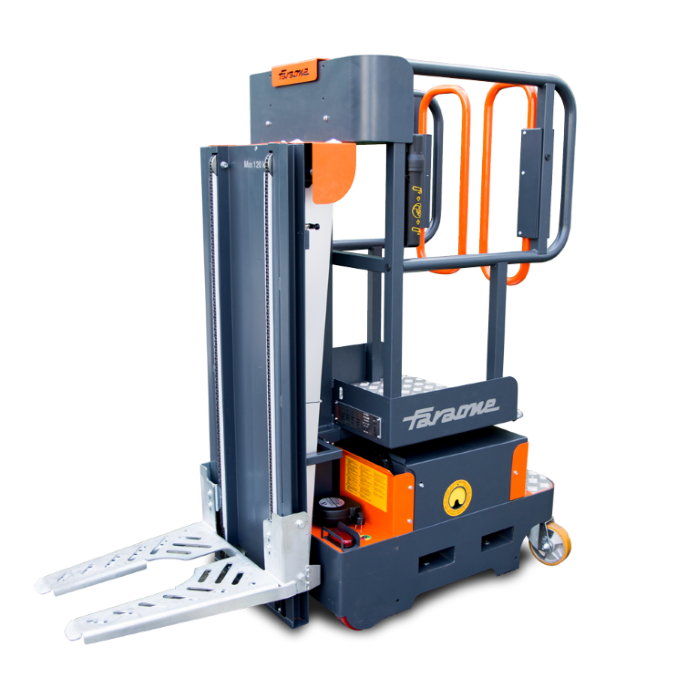

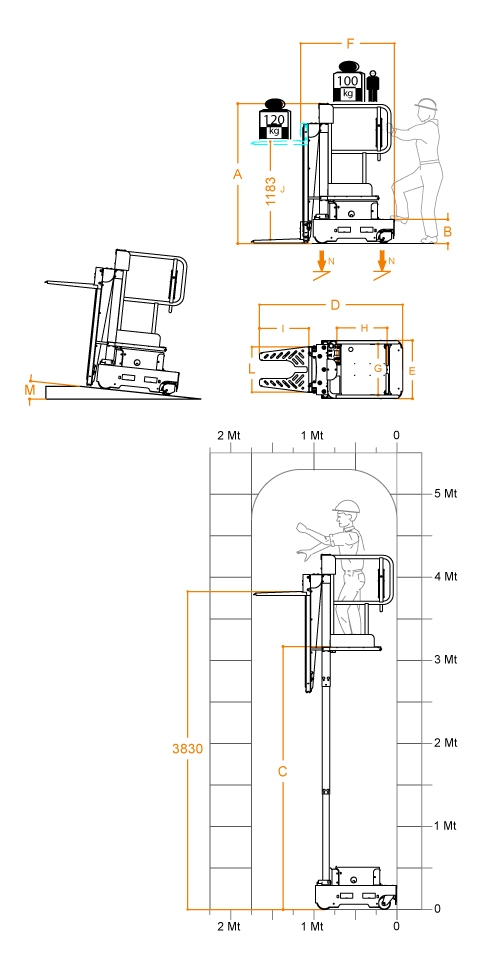

E5 Tires
| Max. working height | 5,15 m | |
|---|---|---|
| Max capacity | 220 kg | |
| Number of people | 1 | |
| Use | Internal - External | |
| A | Closed machine height | 1690 mm |
| B | Min. height from the ground* | 289 mm |
| C | Maximum platform height | 3150 mm |
| D | Base overall dimensions | 1725 mm |
| E | 700 mm | |
| F | 1130 mm | |
| G | Cage dimensions | 685 mm |
| H | 600 mm | |
| Machine weight | 700 kg | |
| Drive wheels dimension | Ø 186 x 60 mm | |
| Swivel wheels dimensions | Ø 150 x 40 mm | |

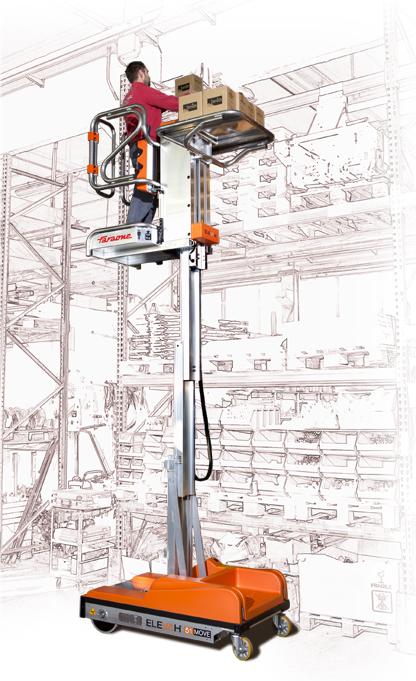

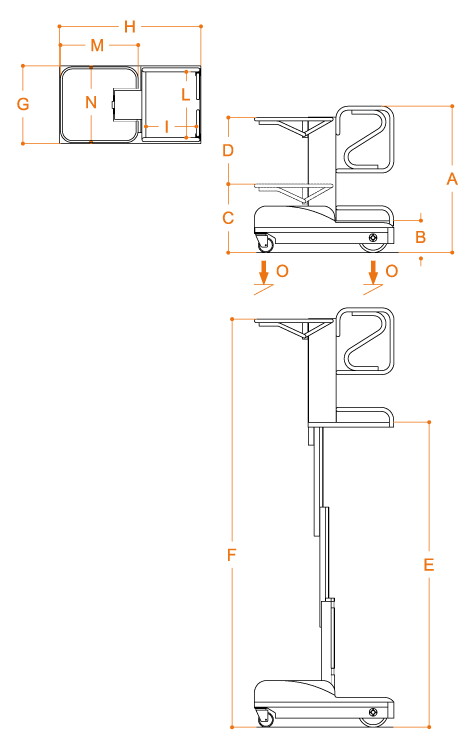

51 MOVE PICKING
| Max. working height | 5,10 m | |
|---|---|---|
| Max capacity | 200 kg | |
| Number of people | 1 | |
| Use | Internal - External | |
| A | Closed machine height | 1430 mm |
| B | Minimum platform height | 325 mm |
| C | Maximum platform height | 3000 mm |
| G | Base overall dimensions | 780 mm |
| H | 1420 mm | |
| F | Cage dimensions | 570 mm |
| G | 690 mm | |
| Machine weight | 330 kg | |
| Drive wheels dimension | Ø 300 x 76 mm | |
| Swivel wheels dimensions | Ø 150 x 40 mm | |

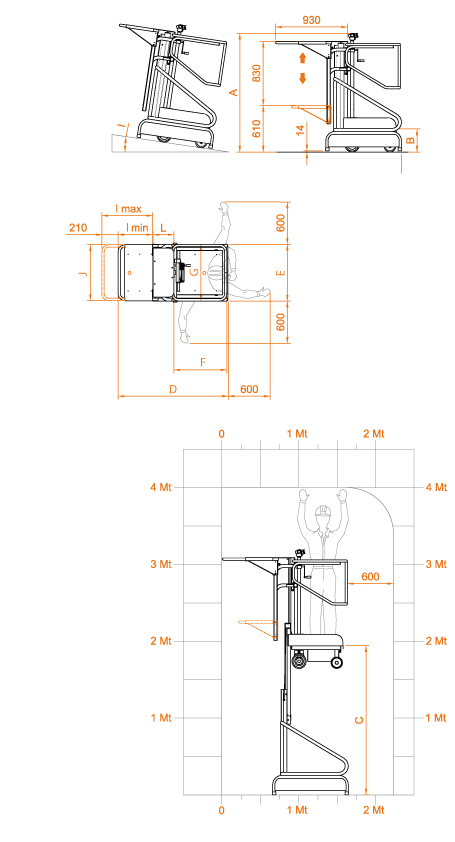

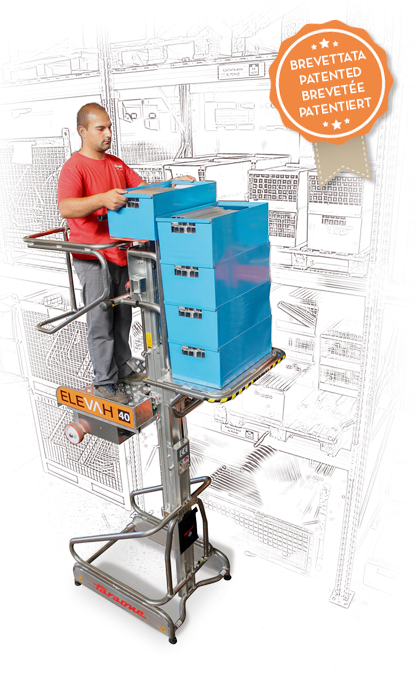

40 MOVE PICKING
| Max. working height | 4,00 m | |
|---|---|---|
| Max capacity | 150 kg | |
| Number of people | 1 | |
| Use | Internal - External | |
| A | Closed machine height | 1550 mm |
| B | Minimum platform height | 300 mm |
| C | Maximum platform height | 1930 mm |
| D | Base overall dimensions | 1435 mm |
| E | 740 mm | |
| F | Cage dimensions | 680 mm |
| G | 740 mm | |
| Machine weight | 200 kg | |
| Fixed picking tray dimensions | 280 x 740 mm | |
| Driving (steering) wheel size | Ø 190 x 60 mm | |
| Swivel wheels dimensions (fixed) | Ø 150 x 45 mm | |
| PICKING PLATFORM | ||
| Adjustment | Manual | |
| H | Stroke | 830 mm |
| Min. height from the ground | 610 mm | |
| Maximum height from the ground | 3100 mm | |
| I | Dimensions | 450 (660) mm |
| J | 725 mm | |
| Capacity | 40 kg | |

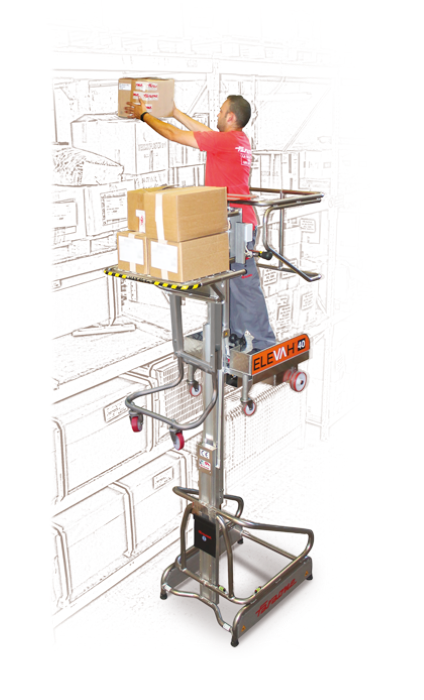

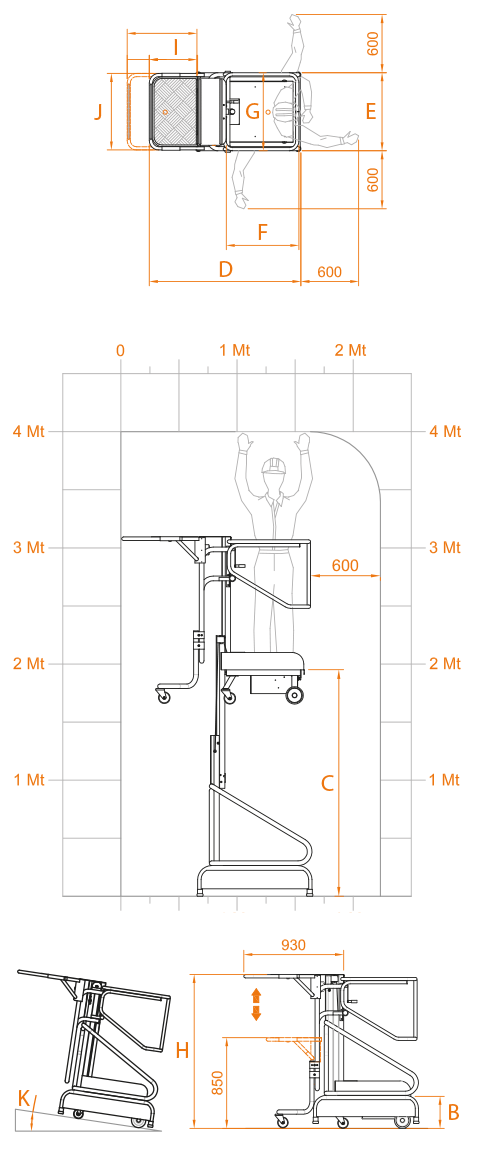

40 B MOVE PICKING
| Max. working height | 4,00 m | |
|---|---|---|
| Max capacity | 150 kg | |
| Number of people | 1 | |
| Use | Internal - External | |
| A | Closed machine height | 1550 mm |
| B | Minimum platform height | 300 mm |
| C | Maximum platform height | 1930 mm |
| D | Base overall dimensions | 1435 mm |
| E | 740 mm | |
| F | Cage dimensions | 680 mm |
| G | 740 mm | |
| Machine weight | 200 kg | |
| Fixed picking tray dimensions | 280 x 740 mm | |
| Driving (steering) wheel size | Ø 190 x 60 mm | |
| Swivel wheels dimensions (fixed) | Ø 150 x 45 mm | |
| PICKING PLATFORM | ||
| Adjustment | Manual | |
| H | Stroke | 830 mm |
| Min. height from the ground | 610 mm | |
| Maximum height from the ground | 3100 mm | |
| I | Dimensions | 450 (660) mm |
| J | 725 mm | |
| Capacity | 40 kg | |
